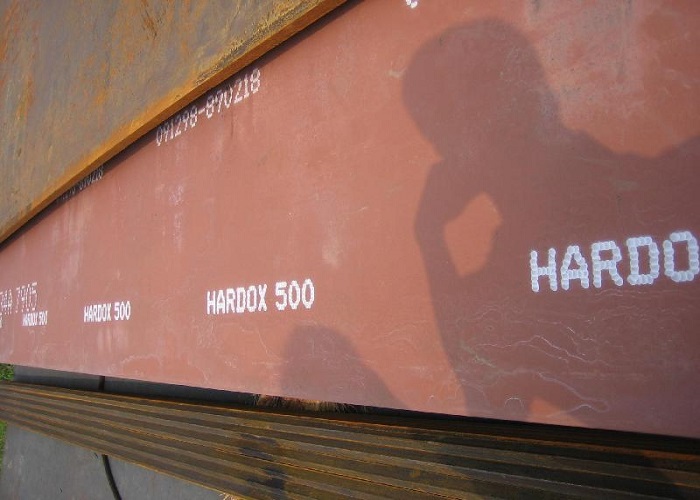

Hardox 500 Wear Resistant Steel Plate
Hardox is the brand for wear solutions with the highest payload and service life. Hardox wear plate meets strict demands on strength, consistent quality, flatness and surface conditions. Thanks to the ideal combination of consistently high hardness and excellent impact toughness makes Hardox wear plate the best material for a wide range of applications: in mining, recycling, transportation, quarrying, concrete and cement work and many other areas.
Product Details

Description:

  • Unique combination of consistently high hardness, high strength and excellent toughness
  • Hardox ist not used not only as wear resistant steel, but also as construction steel and tool steel
  • Complete product range
    • The wide range of hardness grades from 400 to 650 HB
    • Plate thickness 0,7 to 160 mm



Hardness = Wear Resistance

Hardness is what gives Hardox steel its unique wear resistance and structural strength. Hardness minimizes wear since it is difficult for the ‘edges’ of abrasive material to cut into the material. Hardox grades deliver high wear resistance during the plate’s entire service life. Hardness also means it has excellent yield and tensile strength, properties that keep a structure in shape without being deformed.



Toughness = Safety

Toughness is the other strong point of Hardox wear plate. When hardness makes it wear resistant and strong, toughness is what makes it possible to bend, form and weld the material without cracking. If a Hardox wear plate is stressed beyond its yield point and plastically deformed—on purpose in the workshop or when hit by a heavy rock on site—it will resist cracking and if a localized crack should occur, it will resist propagation.



Chemical Composition:

Grade C  Si  Mn  P S Cr  Ni Mo  B
(max %) (max %) (max %) (max %) (max %) (max %) (max %) (max %) (max %)
Hardox 500 0.30 0.70 1.60 0.02 0.01 1.50 1.50 0.60 0.005




Physical properties :

Grade Thickness  Hardness (HBW) Yield strength (MPa) Tensile strength (MPa) Elongation  A
Hardox 500 4.0-103 450-540 1250 1450 8
