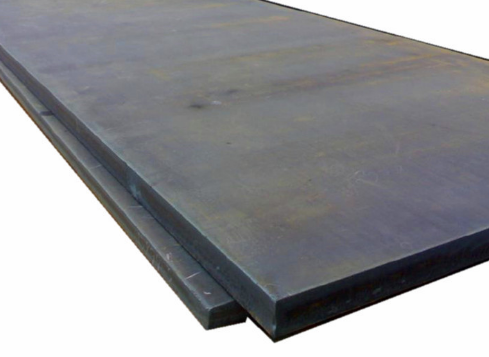

JIS G4501 S50C Carbon Steel Sheet

S50C steel is high-strength medium carbon steel with low cold deformation plasticity, poor welding performance and hardenability, but no tempering brittleness and acceptable cutting performance. It is generally used under normalizing or quenching and tempering to manufacture machined parts and spring parts with high wear resistance and little dynamic load and impact, such as forged gear, pull rod, roll, shaft, friction disc, agricultural digging ploughshare, heavy-duty mandrel, etc.

Product Details

Product Name	Steel sheets/plate
Thickness	8-400mm
Width	1500mm,3000mm or as required
Length	3000mm,6000mm or as required
Standard	JIS G4501
Technique	Annealing, normalizing or high temperature tempering
Surface Treatment	According to customer's requirement
Thickness Tolerance	±0.01mm~ ±0.25mm
Material	S50C
Application	It is generally used under normalizing or quenching and tempering to manufacture machined parts and spring parts with high wear resistance and little dynamic load and impact, such as forged gear, pull rod, roll, shaft, friction disc, agricultural digging ploughshare, heavy-duty mandrel, etc.
MOQ	1 ton , We can accept sample order.
Shipment Time	Within 15-20 workdays after receiving deposit or workable L/C
Export Packing	Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
Capacity	250,000 tons/year

Chemical Composition:

C	Si	Mn	P	S	Cr	Ni	Cu	Mo	Ti
%	%	%	%	%	%	%	%	%	%
0.50	0.26	0.76	0.009	0.005	0.04	0.03	0.06	0.026	0.50

Physical properties :

Tensile strength	650MPa
Yield strength	405MPa
Elongation	13.5%
Impact Energy (J)	44

*
*
