JIS G3101 SS400 Carbon Steel Plates

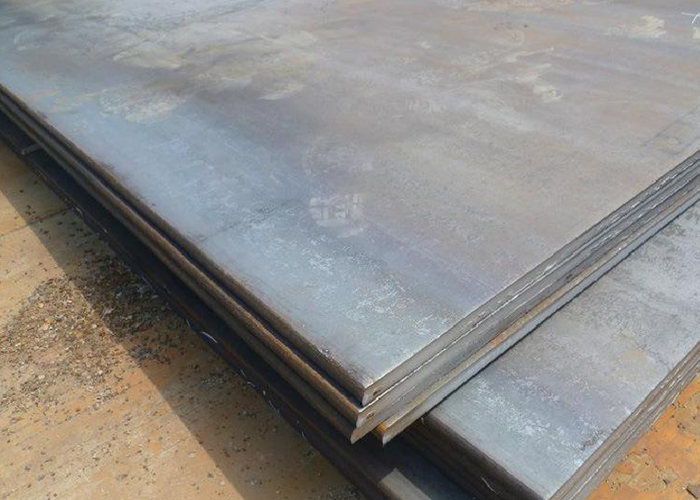

SS400 steel is a structural hot Rolled steel in the form of plates, sheets & strips for general structural applications. SS400 is a material grade and designation defined in JIS G 3101 standard.JIS G 3101 is a Japanese material standard for hot Rolled steel plates, sheets, strips for general structural usage. The structural quality hot rolled SS400 steel is more reliable in its tensile strength than SS330 Steel.

Product Details

Product Name	SS400 Steel plates
Size	as required
Width	50mm-6000mm or as required
Thickness	3mm-150mm or as required
Standard	JIS G3101
Technique	Hot rolled /Cold rolled
Surface Treatment	According to customer's requirement
Thickness Tolerance	±0.01mm~ ±0.25mm
Material	SS400
Application	Making structural tubes,various other structural sections and steel.
MOQ	1 ton , We can accept sample order.
Shipment Time	Within 15-20 workdays after receiving deposit or workable L/C
Export Packing	Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
Capacity	250,000 tons/year

Chemical Composition:

Grade	C	Si	Mn	P	S
Grade	%	≤%	%	≤%	≤%
SS400	/	/	/	0.50	0.50

Physical properties :

Tensile strength (MPa)	400-510
Yield strength (MPa)	≥245(thickness≦16mm)
	≥235(thickness>16-40mm)
	≥215(thickness>40-100mm)
	≥205(thickness>100mm)

The elongation property of SS400 steel varies with the ranges of thickness. The minimum percentage ranges for elongation is 17% thicknesses till 16 mm, 21% for thicknesses till 40 mm, and 23% greater than 50 mm.
The melting point of SS400 is fourteen hundred and thirty-degree celsius.Brinell hardness is around 160 HB.

Equivalent Grades:

In American standards, ASTM A36 and ASTM A283 Grade D are referred to as equivalent materials.

In European standards, EN S275 and BS 43A are referred to as equivalent materials.

*
*
