Carbon Steel Plate & Sheet, ASTM A285 Pressure Vessel Carbon Steel Plates , Pressure Vessel Carbon Steel Plates

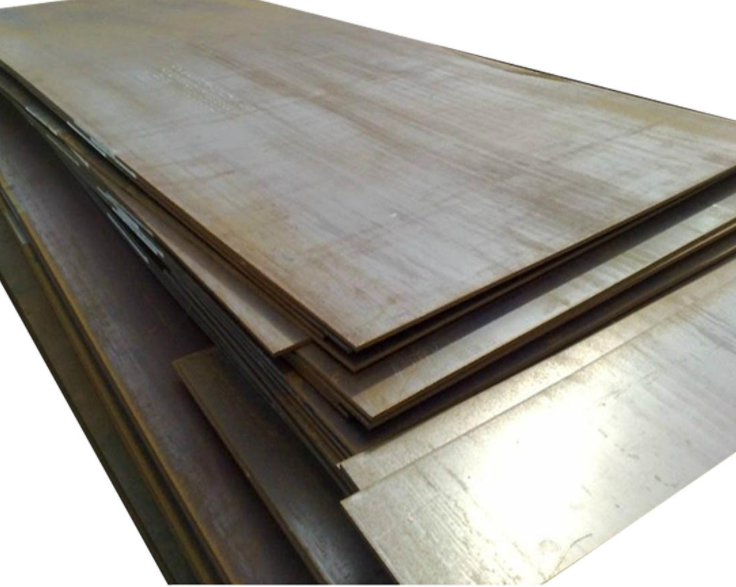

ASTM A285 Pressure Vessel Carbon Steel Plates

ASTM A285 is a type of ordinary carbon steel intended for fusion-welded pressure vessel equipments as boiler, storage tank, heat exchangers, etc. With 3 steel grades (Grade A, Grade B, Grade C) covering tensile strength range from 310-515Mpa,usually ASTM A285 steel plate is delivered as-rolled condition. made by killed, semi-killed, capped or rimmed steel practices according to the end users’ requirement.
ASTM A285 steel could be manufactured into many steel product forms, steel plates, steel coil, steel pipe, it has good weld-ability for fusion weld need for pressure vessel equipment, its max thickness is limited to 50mm in order to insure its mechanical property. We could supply hot rolled and cold rolled ASTM A285 steel plate, customers can also have specific fabrication cutting ( any size and any shape ) drilling, welding, milling, machining and steel structure according to drawing.

Product Details

Product Name	Pressure Vessel Carbon Steel Plates
Size	as required
Width	1000-3000mm or as required
Thickness	3mm-600mm
Standard	ASME/ASTM
Technique	Hot rolled
Surface Treatment	According to customer's requirement
Thickness Tolerance	±0.01mm~ ±0.25mm
Material	SA 285 Gr.A
Application	Bused in the manufacture of storage tanks and low pressure, temperature controlled vessels.
MOQ	1 ton , We can accept sample order.
Shipment Time	Within 15-20 workdays after receiving deposit or workable L/C
Export Packing	Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
Capacity	250,000 tons/year

Chemical Composition:

ASTM A285	Grade A	Grade B	Grade C
Carbon, max	0.17	0.22	0.28
Manganese, max	0.9	0.9	0.9
Phosphorus, max	0.035	0.035	0.035
Sulphur, max	0.035	0.035	0.035

Physical properties :

Steel Grade	Tensile strength ,min Ksi Mpa	Yield strength min Ksi Mpa	Elongation under 50mm
			(50 mm)% min.
SA-285 Gr.A	45-65 ( 310-450 )	24 ( 165 )	30
SA285 Gr B	345-485	185	28
SA285 Gr C	380-515	205	27

*
*
