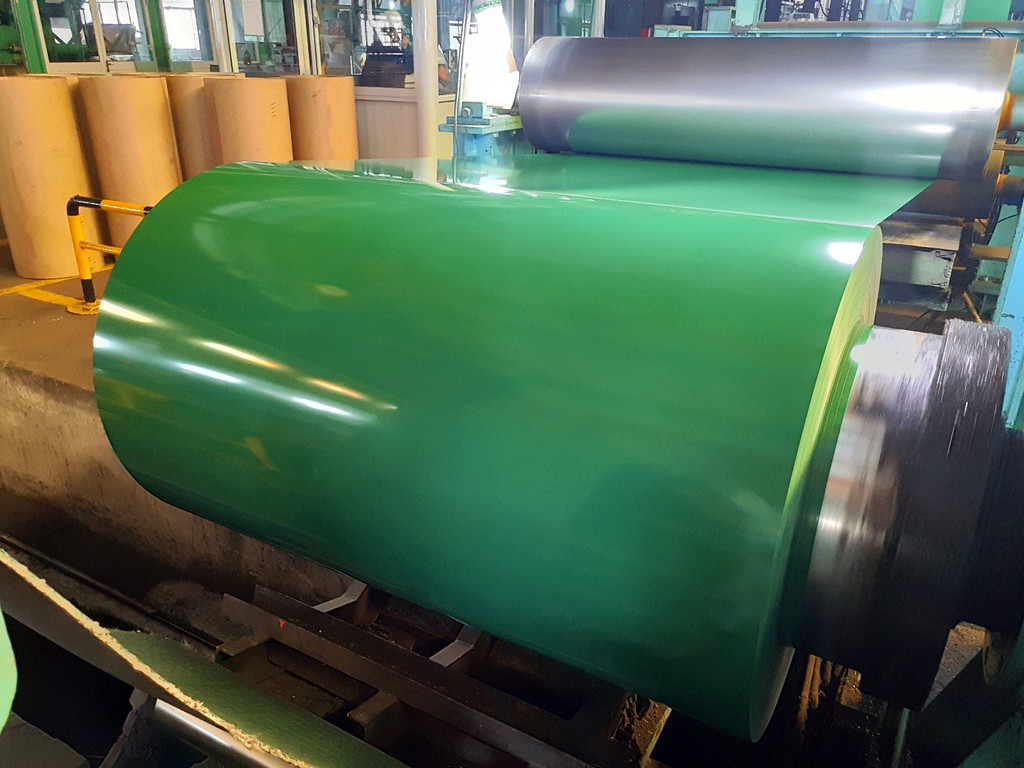

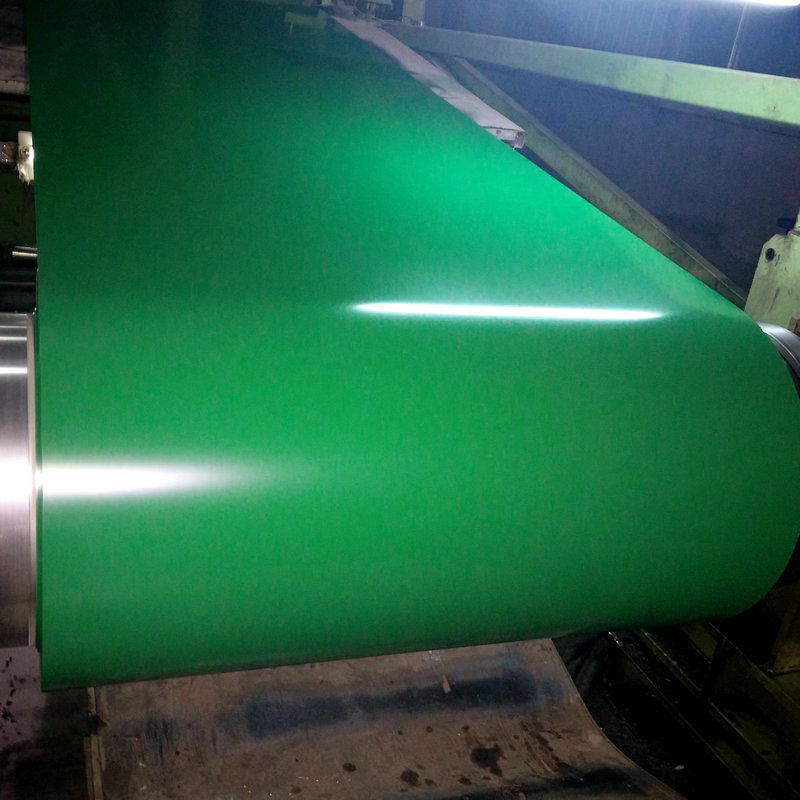

Prepainted Galvanized Steel Coil / Sheet
PPGI is pre-painted galvanised iron, also known as pre-coated steel, coil coated steel, color coated steel etc., typically with a hot dip zinc coated steel substrate.
The term is an extension of GI which is a traditional abbreviation for Galvanized Iron. Today the term GI typically refers to essentially pure zinc (>99%) continuously hot dip coated steel, as opposed to batch dip processes. PPGI refers to factory pre-painted zinc coated steel, where the steel is painted before forming, as opposed to post painting which occurs after forming.
The properties of pre-painted hot dip galvanized steel are tough coating, completed protection, low maintenance and long life.
Product Details
Description
Prepainted Galvanized Steel Coil/Sheet
Standard
ASTM, JIS, GB,BS
Grade
DX51D+Z/DX52D+Z/DX53D+Z,SPCC+Z,TDC51D/TDC52D/TDC53D/TS280GD/TS350GD/TS550GD/TSECC/TSECD/TSECE/CGCC/CGCC1/CGC400
Thicknees
0.14-1.2 mm
Width
600-1500mm
Surface Finish
Normal Coated
Embossed
Printed
Zinc Coating
Z40-Z275g/m2
Color
all RAL Colors, or According to Customers‘ Require/Sample
Category Of Finish Coating
High-durability Polyester
Polyvinylidene Fluoride
Anti-static
Polyester
Silicon Modified Polyesters
Easy-Cleaning
Coating Type
Top Surface
Bottom Surface
Double Coated
Double Coated
Double Coated
Single Coated
Coating Thickness
Top Surface:10-25microns
Back Surface: 3-20microns
Coating Structure
Primer
Finish Coating
Epoxy Primer
Polyester
Polyester Primer
Silicon Modified Polyesters
Water-soluble Acrylic Acid Primer
High-durability Polyester
Polyurethane Primer
Polyvinylidene Fluoride
Method of Test
1. Acid/Alkaline-Resistance Test
2. Test of Resistance to Neutral Mist
3. Air Exposure Test
Futher Process
1. Cut coil into Sheet

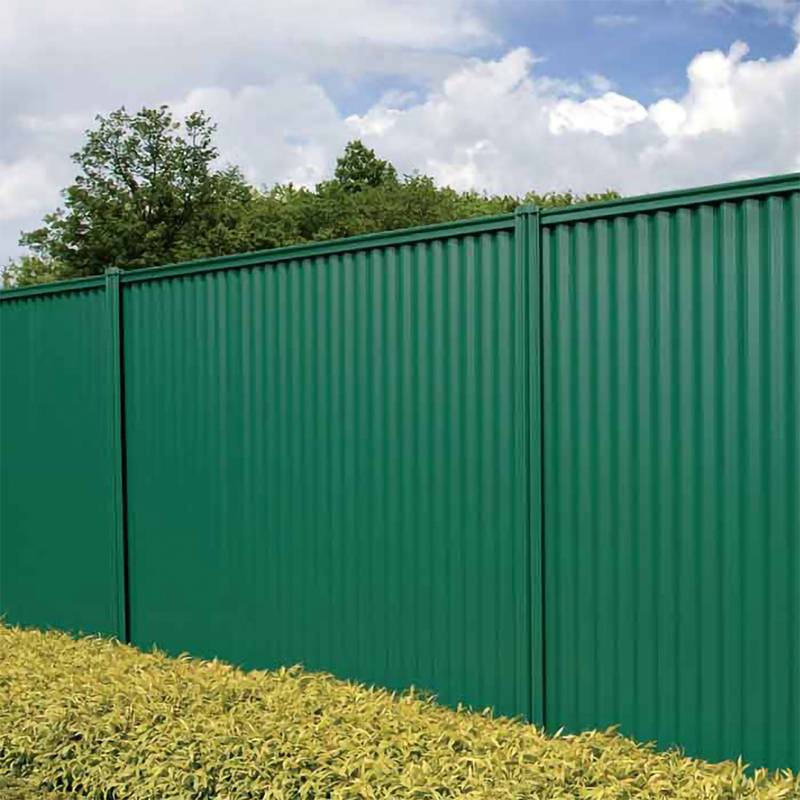

2. Corrugated Roofing Sheet
Coil ID
508mm
Coil weight
3-10 ton
MOQ
1 ton , We can accept sample order.
Shipment Time
Within 15-20 workdays after receiving deposit or workable L/C
Export Packing
Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
Capacity
250,000 tons/year

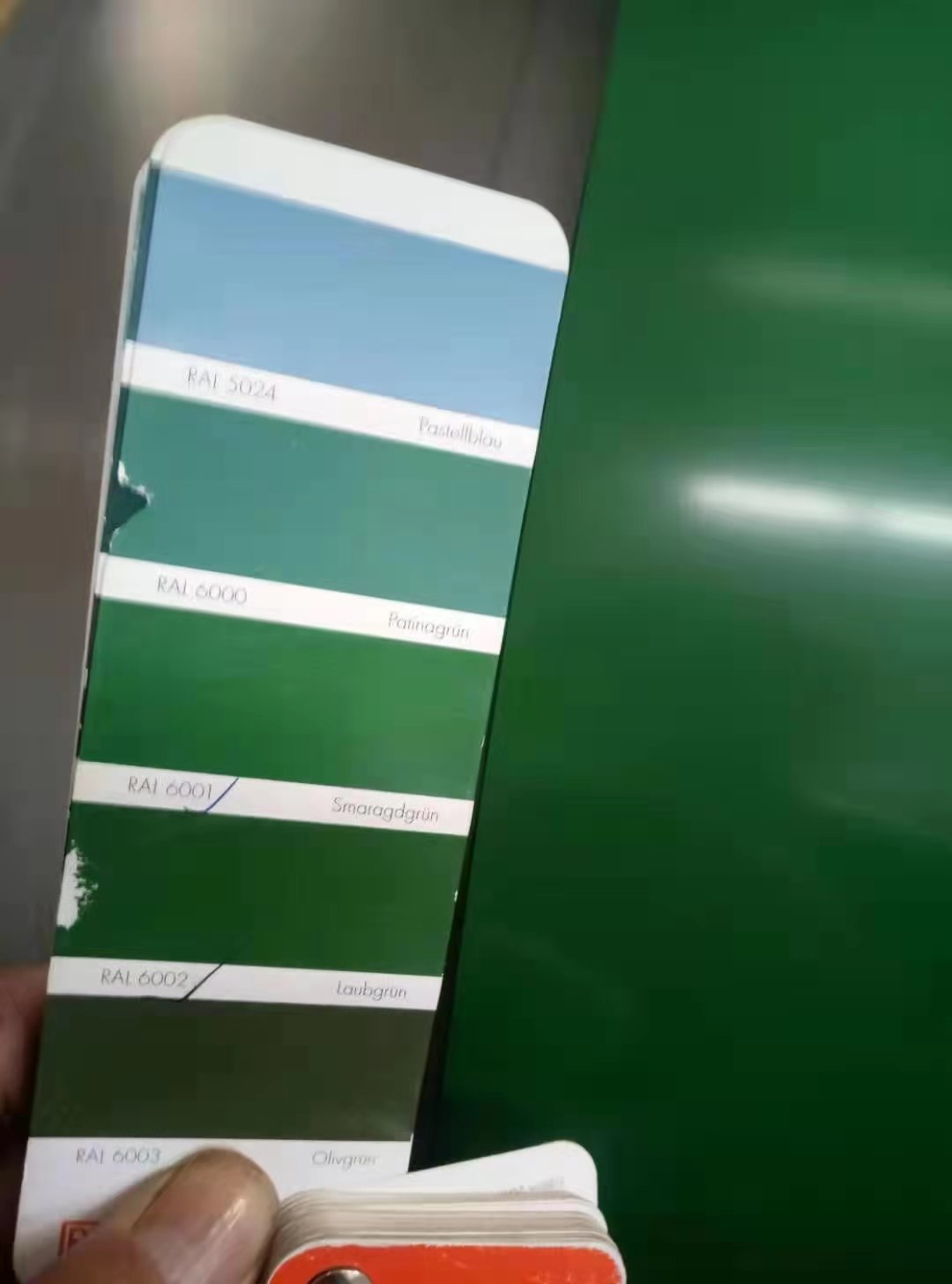

Common RAL Colors:
You can choose the customized color you want and produce according to the RAL color. Here are some of the colors that our customers would normally choose:
FAQ:
Q1. What are your company's main products ?
A1: Our main products are stainless steel & Galvanize coils, plate/sheet, round/square pipe etc.
Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.
Q3. What are the advantages of your company ?
A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q4: What is the terms of packing?
A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.
Q5:What is your delivery time?
A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q6. Can you provide sample ?
A7: We can provide the samll samples in stock for free, as long as you contact us.
Customized samples will take about 5-7days.
Q7. How many coutries you already exported ?
A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India,Thailand, Vietnam, South Korea etc.
