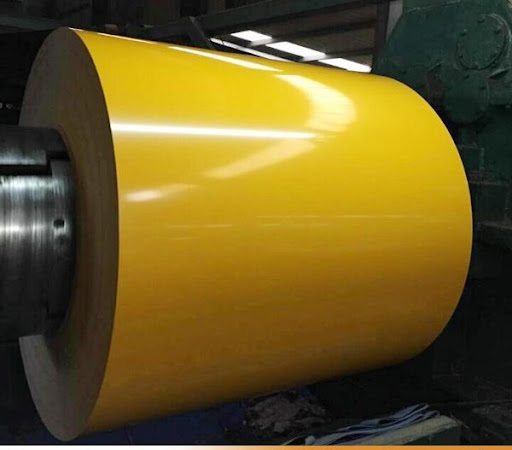

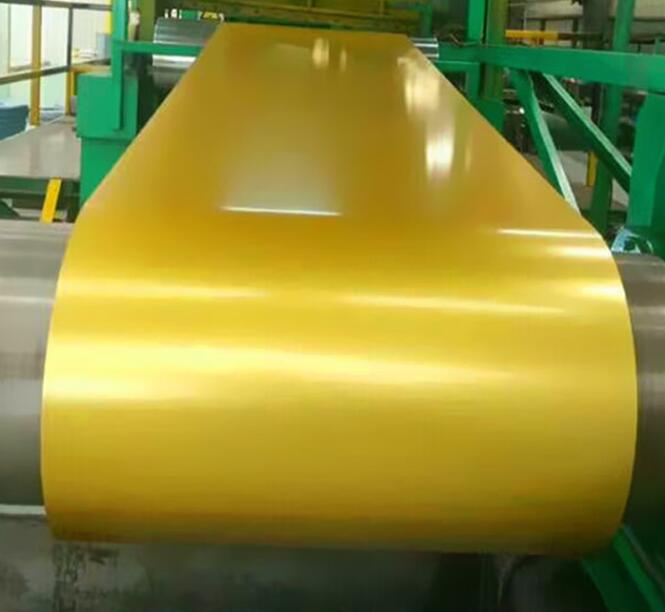

PPGI Pre-painted Hot-dip Galvanized Steel Coil，Coated Galvanized Steel Coil, Hot-dip Galvanized Steel Coil,PPGI, Galvanized Steel Coil /Galvanized Sheet

PPGI with beautiful color

PPGI is pre-painted galvanised iron, also known as pre-coated steel, coil coated steel, color coated steel etc., typically with a hot dip zinc coated steel substrate.

The term is an extension of GI which is a traditional abbreviation for Galvanized Iron. Today the term GI typically refers to essentially pure zinc (>99%) continuously hot dip coated steel, as opposed to batch dip processes. PPGI refers to factory pre-painted zinc coated steel, where the steel is painted before forming, as opposed to post painting which occurs after forming.

The properties of pre-painted hot dip galvanized steel are tough coating, completed protection, low maintenance and long life.

Product Details

Description	Prepainted Galvanized Steel Coil/Sheet
Standard	ASTM, JIS, GB,BS
Grade	DX51D+Z/DX52D+Z/DX53D+Z,SPCC+Z,TDC51D/TDC52D/TDC53D/TS280GD/TS350GD/TS550GD/TSECC/TSECD/TSECE/CGCC/CGCC1/CGC400
Thicknees	0.14-1.2 mm
Width	600-1500mm
Surface Finish	Normal Coated
Embossed	Printed
Zinc Coating	Z40-Z275g/m2
Color	all RAL Colors, or According to Customers‘ Require/Sample
Category Of Finish Coating	High-durability Polyester
	Polyvinylidene Fluoride
	Anti-static	Polyester
	Silicon Modified Polyesters	Easy-Cleaning
Coating Type	Top Surface	Bottom Surface
	Double Coated	Double Coated
	Double Coated	Single Coated
Coating Thickness	Top Surface:10-25microns	Back Surface: 3-20microns
Coating Structure	Primer	Finish Coating
	Epoxy Primer	Polyester
	Polyester Primer	Silicon Modified Polyesters
	Water-soluble Acrylic Acid Primer	High-durability Polyester
	Polyurethane Primer	Polyvinylidene Fluoride
Method of Test	1. Acid/Alkaline-Resistance Test
	2. Test of Resistance to Neutral Mist
	3. Air Exposure Test
Futher Process	1. Cut coil into Sheet

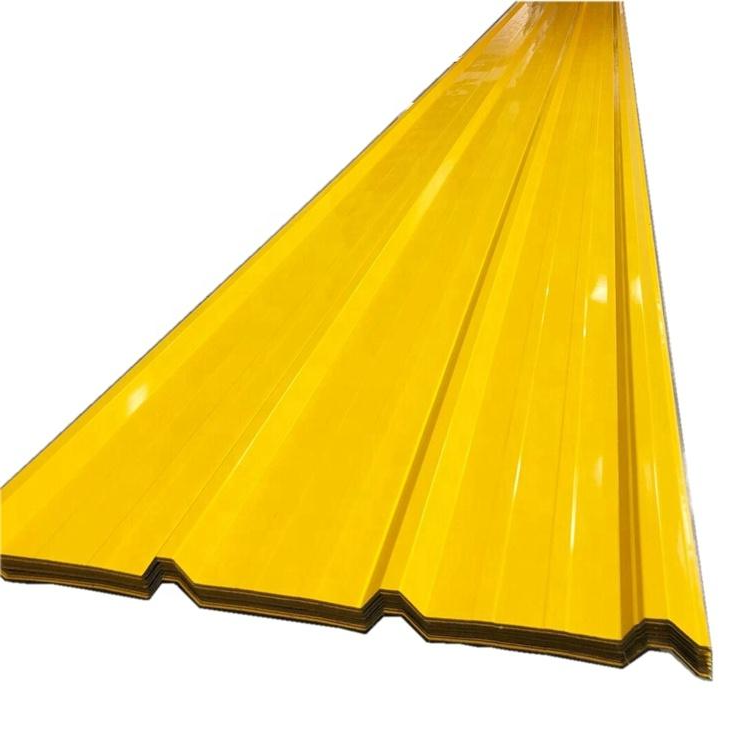

	2. Corrugated Roofing Sheet
Coil ID	508mm
Coil weight	3-10 ton
MOQ	1 ton , We can accept sample order.
Shipment Time	Within 15-20 workdays after receiving deposit or workable L/C
Export Packing	Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
Capacity	250,000 tons/year

Application:

Pre-painted steel coils are used in roof structure, surface sheet of balcony, frame of window, folding screen and electrical equipment. Pre-painted steel can be formed into almost any shape, and it has excellent resistance to weathering, superior longevity and texture options.

Common RAL Colors:

You can choose the customized color you want and produce according to the RAL color. Here are some of the colors that our customers would normally choose:

FAQ:

Q1. What are your company's main products ?

A1: Our main products are stainless steel & Galvanize coils, plate/sheet, round/square pipe etc.

Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.

Q3. What are the advantages of your company ?

A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.

Q4: What is the terms of packing?

A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.

Q5:What is your delivery time?

A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit

For production period, it usually takes about 15 days-30 days after receiving the deposit.

Q6. Can you provide sample ?

A7: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.

Q7. How many coutries you already exported ?

A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India,Thailand, Vietnam, South Korea etc.

*
*
