Current Location : Home > Products > Carbon steel pipe > ASTM A179 / A179M S...

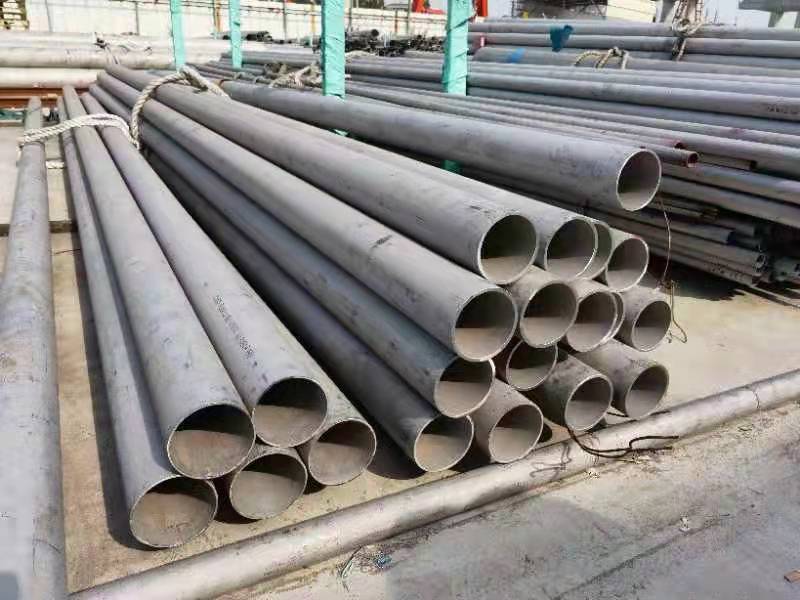

ASTM A179 / A179M Seamless Steel Pipe for Heat-Exchanger and Condenser Tubes.

ASTM A179 / ASME SA179 Carbon Steel Tubes are known as are carbon steel tubes are ductile and are also known as strong tubes that provide you with long wearing properties. These offer some excellent features like energy efficiency, cost-effectiveness, and effective performance, even at elevated temperature conditions. The ASTM A179 Heat Exchanger Tubes used for various other general purposes and applications, throughout the world.


Product Details

Product Name

ASTM A179 / SA179M  Seamless Steel Pipe

Dia.

19.05-76.2mm

Length

5m -12m or as required

Thickness

SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Standard

ASTM, ASME and API

Technique

Cold drawn / Hot rolled

Surface Treatment

3PE/3LPE, FBE, Galvanized etc.

Thickness Tolerance

±0.01mm~ ±0.25mm

Material

Carbon Steel

Application

For Tubular heat exchangers, condensers, and similar heat transfer apparatuses

MOQ

1 ton , We can accept sample order.

Shipment Time

Within 15-20 workdays after receiving deposit or workable L/C

Export Packing

Waterproof paper, and steel strip packed.
Standard Export Seaworthy Package.Suit for all kinds of transport,or as required

Capacity

250,000 tons/year




Other available type of ASTM A179 tubes

ASTM A179 Low Carbon Steel Round Tubes ASTM A179 Plain End Tubes
ASTM A179 Low Carbon Steel SquareTubes ASTM A179 Bevelled  End Tubes
ASME SA 179 Rectangular Tubes ASTM A179 Double Range Steel Tubes
ASTM A 179 Condenser Tubes ASTM A179 Single Range Steel Tubes
ASTM A179 Heat Exchange Tubes ASTM A179 Polish Seamless Tubes



ASTM A179 Chemical Composition:

C Si Mn P S Mo Cr V
0.06-0.18 / 0.27-0.63 ≤0.035 ≤0.035 / / /



ASTM A179 Physical properties :

Tensile Strength (Mpa)  Yield Strength  (Mpa) Elongation (%) Hardness (HRB)
≥325 ≥180 ≥35 ≤72




NPS O.D ANSI B36.10   B36.19  Wall Thickness
DN(mm) inch mm Sch5S Sch10S Sch10 Sch20 Sch30 Sch40S STD Sch40 Sch60 Sch80 XS Sch80S Sch100 XXS
8 1/4 13.72 - 1.65 - - - 1.73 1.73 1.73 - 3.02 3.02 3.02 - -
10 3/8 17.14 - 1.65 - - - 2.31 2.31 2.31 - 3.2 3.2 3.2 - -
15 1/2 21.34 1.65 2.11 - - - 2.77 2.77 2.77 - 3.73 3.73 3.73 - 7.47
20 3/4 26.67 1.65 2.11 - - - 2.87 2.87 2.87 - 3.91 3.91 3.91 - 7.82
25 1 33.4 1.65 2.77 - - - 3.38 3.38 3.38 - 4.55 4.55 4.55 - 9.09
32 1 1/4 42.16 1.65 2.77 - - - 3.56 3.56 3.56 - 4.85 4.85 4.85 - 9.7
40 1 1/2 48.26 1.65 2.77 - - - 3.68 3.68 3.68 - 5.08 5.08 5.08 - 10.16
50 2 60.32 1.65 2.77 - - - 3.91 3.91 3.91 - 5.54 5.54 5.54 - 11.07
65 2 1/2 73.02 2.11 3.05 - - - 5.16 5.16 5.16 - 7.01 7.01 7.01 - 14.02
80 3 88.9 2.11 3.05 - - - 5.49 5.49 5.49 - 7.62 7.62 7.62 - 15.24
90 31/2 101.6 2.11 3.05 - - - 5.74 5.74 5.74 - 8.08 8.08 8.08 - -
100 4 114.3 2.11 3.05 - - - 6.02 6.02 6.02 - 8.56 8.56 8.56 - 17.12
125 5 141.3 2.77 3.4 - - - 6.55 6.55 6.55 - 9.53 9.53 9.53 - 19.05
150 6 168.28 2.77 3.4 - - - 7.11 7.11 7.11 - 10.97 10.97 10.97 - 21.94
200 8 219.08 2.77 3.4 - 6.35 7.04 8.18 8.18 8.18 10.31 12.7 12.7 12.7 15.09 22.22
250 10 273.05 3.4 3.76 - 6.35 7.8 9.27 9.27 9.27 12.7 12.7 12.7 15.09 18.26 25.4
300 12 323.85 3.96 4.57 - 6.35 8.38 9.52 9.52 10.3 14.27 12.7 12.7 17.48 21.44 -
350 14 355.6 3.96 4.78 6.35 7.92 9.52 *9.52 9.52 11.13 15.09 12.7 12.7 19.05 23.83 -
400 16 406.4 4.19 4.78 6.35 7.92 9.52 *9.52 9.52 12.7 16.66 12.7 12.7 21.44 26.19 -
450 18 457.2 4.19 4.78 6.35 7.92 11.12 *9.52 9.52 14.27 19.05 12.7 12.7 23.82 29.36 -
500 20 508 4.78 5.54 6.35 7.92 12.7 *9.52 9.52 15.09 20.62 12.7 12.7 26.19 32.54 -
550 22 558.8 4.78 5.54 6.35 7.92 12.7 *9.52 9.52 - 22.22 12.7 12.7 28.58 34.92 -
600 24 609.6 5.54 6.35 6.35 7.92 14.27 *9.52 9.52 17.48 24.61 12.7 12.7 30.96 38.89 -
650 26 660.4 - *7.92 7.92 12.7 - *9.52 9.52 - - 12.7 12.7 - - -
700 28 711.2 - *7.92 7.92 12.7 15.88 *9.52 9.52 - - 12.7 12.7 - - -
750 30 762 6.35 *7.92 7.92 12.7 15.88 *9.52 9.52 - - 12.7 12.7 - - -
800 32 812 - *7.92 7.92 12.7 15.88 *9.52 9.52 17.48 - 12.7 12.7 - - -
850 34 863.6 - *7.92 7.92 12.7 15.88 *9.52 9.52 17.48 - 12.7 12.7 - - -
900 36 914.4 - *7.92 7.92 12.7 15.88 *9.52 9.52 19.05 - 12.7 12.7 - - -
950 38 965.2 - *7.92 - - - *9.52 9.52 - - 12.7 12.7 - - -
1000 40 1016 - *7.92 - - - *9.52 9.52 - - 12.7 12.7 - - -
1050 42 1066.8 - *7.92 - - - *9.52 9.52 - - 12.7 12.7 - - -
1100 44 1117.6 - *7.92 - - - *9.52 9.52 - - 12.7 12.7 - - -
1150 46 1168.4 - *7.92 - - - *9.52 9.52 - - 12.7 12.7 - - -
1200 48 1219.2 - *7.92 - - - *9.52 9.52 - - 12.7 12.7 - - -
1300 52 1320.8 - - - - - - 9.52 - - - 12.7 - - -
1350 54 1371.6 - - - - - - 9.52 - - - 12.7 - - -
1400 56 1422.4 - - - - - - 9.52 - - - 12.7 - - -
1500 60 1524 - - - - - - 9.52 - - - 12.7 - -
1600 64 1625.6 - - - - - - 9.52 - - - 12.7 - -
1700 68 1727.2 - - - - - - 9.52 - - - 12.7 - -
1800 72 1828.8 - - - - - - 9.52 - - - 12.7 - -
1900 76 1930.4 - - - - - - 9.52 - - - 12.7 - -
2000 80 2032 - - - - - - 9.52 - - - 12.7 - -
