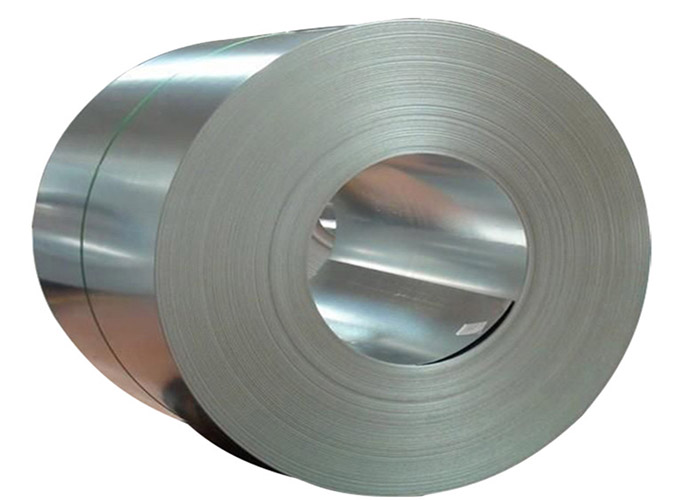

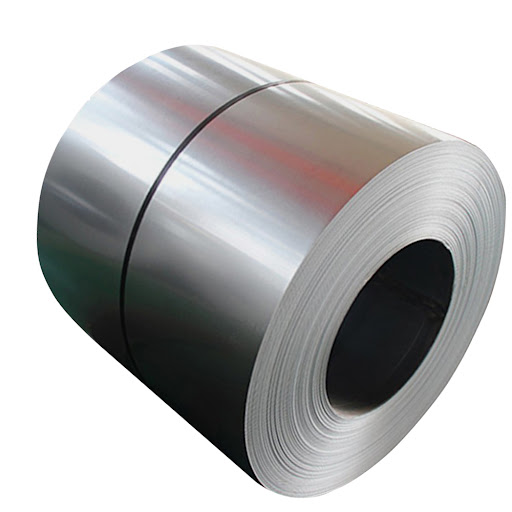

Electro Galvanized Steel Coil (EGI)

Electro galvanized steel is created by electroplating a pure zinc coating on either one or two sides of a carbon steel sheet or strip. Prior to being immersed in a bath of molten zinc, the steel must pass through a surface-preparation process, including caustic cleaning, pickling, and fluxing. After the carbon steel surface is properly prepared, the steel is passed through a molten zinc-plating bath. The continuous electrolytic coating process covers the steel surface with a highly uniform coating. As a result, electro galvanized steel has a thin, smooth, zinc coating that is exceptionally uniform with a matte appearance.

We offer electro galvanized master coils and we can slit to width (narrow widths are our specialty) as well.

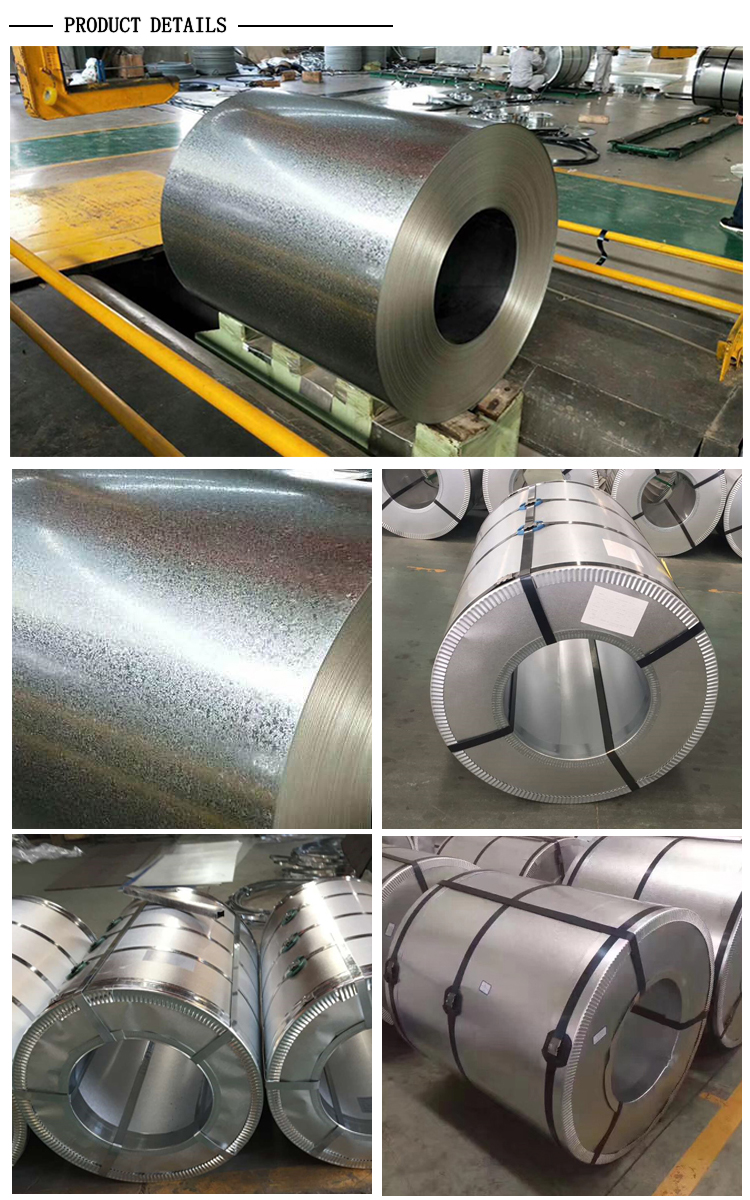

Product Details

Specifications	JIS G3313 SECC	JIS G3313 SECD	JIS G3313 SECE
Application	Commercial Quality	Drawing Quality	Deep Drawing Quality
Usage	Furniture, Computer Case, Electronic Parts, Electrical Equipment	Automobile	Automobile

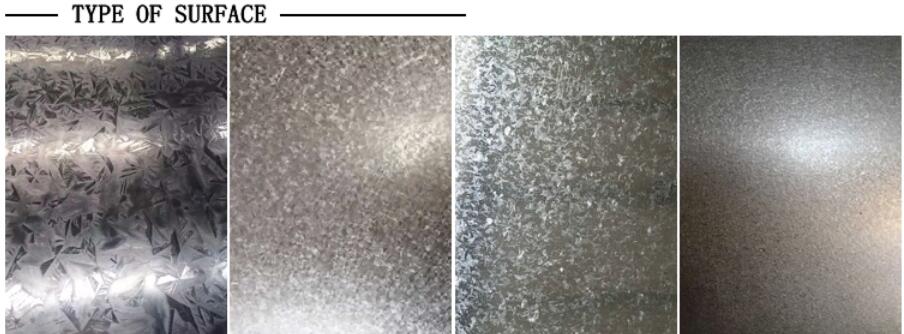

Type of Surface Treatment	Chromate Treatment, Phosphate Treatment, Oiling
Available Size	Thickness: 0.3~1.6mm
	Width: 850~1580mm
	Coating Weight: 10-30g/m (single side)
	Max. Coil Weight: ≦ 20 MT
MOQ:	3 ton per color/ size
Supply Ability:	5000t/month
Delivery Time:	Within 15 days after receiving the pre-payment.
Export Packing:	Standard Export Seaworthy Package.
Payment Terms:	L/C at sight, T/T or Negotiable.

Electro Galvanized Steel Sheet Properties

The mechanical properties of electrogalvanized sheet are approximately the same as those for the equivalent grade (steel designation) of cold rolled sheet because the steel coils are pre-annealed prior to processing on the electroplating line. For example, DDS cold rolled sheet and DDS electrogalvanized sheet have similar mechanical properties. This does not mean that electrogalvanized product will behave similarly during stamping/drawing.The coating influences the behavior during forming; thus, special practices are required when stamping electrogalvanized products. With the correct type of die material, clearances, etc., the stamping performance of the two products are similar.

*
*
