PPGI Pre-painted Hot-dip Galvanized Steel Coil

PPGI / PPGL / PPGF Pre-painted Hot-dip Galvanized Steel Coil

PPGI is pre-painted galvanised iron, also known as pre-coated steel, coil coated steel, color coated steel etc., typically with a hot dip zinc coated steel substrate.

The term is an extension of GI which is a traditional abbreviation for Galvanized Iron. Today the term GI typically refers to essentially pure zinc (>99%) continuously hot dip coated steel, as opposed to batch dip processes. PPGI refers to factory pre-painted zinc coated steel, where the steel is painted before forming, as opposed to post painting which occurs after forming.

The properties of pre-painted hot dip galvanized steel are tough coating, completed protection, low maintenance and long life.

Product Details

Product Name:	PPGI, Prepainted Galvanized Steel Coil
Standard:	ASTM DIN GB JIS3312
Type	Commercial Quality/DQ
Grade:	SGCC SGCD or customer's requirement
Coil weight:	3-10 ton or according to your request
Thickness:	0.13-2.0mm
Width:	600mm-1500mm
Zinc coating:	40-275 g/m2
Color	all RAL Colors, or According to Customers Require/Sample
Top Side	Primer paint+polyester paint coating
Back side	Primer epoxy
MOQ:	3 ton per color/ size
Supply Ability:	5000t/month
Delivery Time:	Within 15 days after receiving the pre-payment.
Export Packing:	Standard Export Seaworthy Package.
Payment Terms:	L/C at sight, T/T or Negotiable.

Application：

Pre-painted steel coils are used in roof structure, surface sheet of balcony, frame of window, folding screen and electrical equipment. Pre-painted steel can be formed into almost any shape, and it has excellent resistance to weathering, superior longevity and texture options.

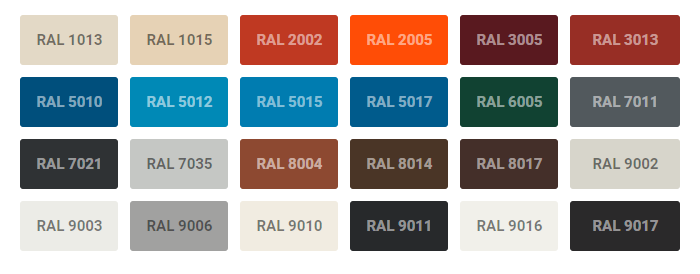

Common RAL Colors：

You can choose the customized color you want and produce according to the RAL color. Here are some of the colors that our customers would normally choose:

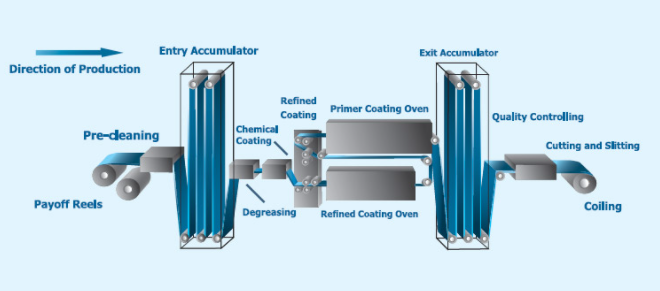

Flow chart:

*
*
