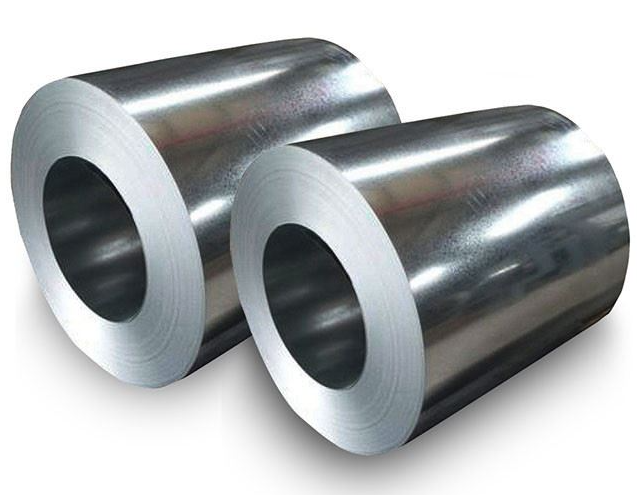

Hot dipped Galvanized Steel coil

Z06 - Z27 Hot dipped Galvanized Steel coil

Galvanized steel is defined as a carbon steel sheet coated with zinc on both sides. There are two main processes used to produce galvanized steel: continuous hot dipping and electro-galvanizing. The hot dipping process consists of passing the steel through a bath of molten zinc, while the electro-galvanizing process consists of the application of zinc through electrolytic disposition. The result is a layer of zinc tightly adhering to the base metal through an iron-zinc bonding layer.

Most important, our hot-dipped galvanized steel coil and sheet service capabilities include slitting,cutting to length, blanking, degreasing and brushing, stretcher leveling and metallurgical support.

Product Details

Product Name:	Hot-dipped galvanize coil
Standard:	AISI, ASTM, BS, DIN, GB, JIS, DIN-1623, EN-10130, JIS-G3141, etc.
Material:	Q235 Q345 or according to your request
Grade:	SGCC,CGCC,SGCD,SPCC,DX51D ,DX52D,DX53D
Coil weight:	3-10 ton or according to your request
Thickness:	0.12mm-6.0mm
Width:	20mm-1250mm or according to your request
Zinc coating:	Z06,Z08,Z10,Z12,Z18,Z20,Z22,Z25,Z27
Surface Structure:	Zero Spangle / Mini Spangle / Regular Spangle / Big Spangle
Surface Treatment:	Passivation/skin pass/non-oiled/oiled
Technique:	Hot dip galvanized
Performance:	Durable, anti-fingerprint
MOQ:	1 ton per size
Supply Ability:	5000t/month
Delivery Time:	Within 15 days after receiving the pre-payment.
Export Packing:	Standard Export Seaworthy Package.
Payment Terms:	L/C at sight, T/T or Negotiable.

Advantages of Galvanized Steel

The main advantage of galvanized steel is its corrosion resistance. The zinc coating serves as a barrier between the steel and the environment and will sacrifice itself in order to protect the underlying steel; Meaning the zinc will degrade much sooner than the steel itself. Additionally, it offers good processability and formability.

Galvanized Steel Coil Material Types

Commercial Steel (CS Types A, B, and C)
Forming Steel (FS Types A and B)
Deep Drawing Steel (DDS Types A and C)
Extra Deep Drawing Steel (EDDS)
Structural Steel (SS) – further designated by Grades (33,37,40,50,80)
High Strength Low Alloy Steel (HSLAS)

Coating Designation(both sides)

Standard	JIS G3302
Z06	60g/m²	Z18	180g/m²	Z27	275g/m²
Z08	80g/m²	Z20	200g/m²	Z35	350g/m²
Z10	100g/m²	Z22	220g/m²	Z45	450g/m²
Z12	120g/m²	Z25	250g/m²	Z60	600g/m²

Typical Galvanized Steel Coil Applications:

Exterior building products
Ductwork
HVAC products
Flashing
Roofing
Doors
Sashes
