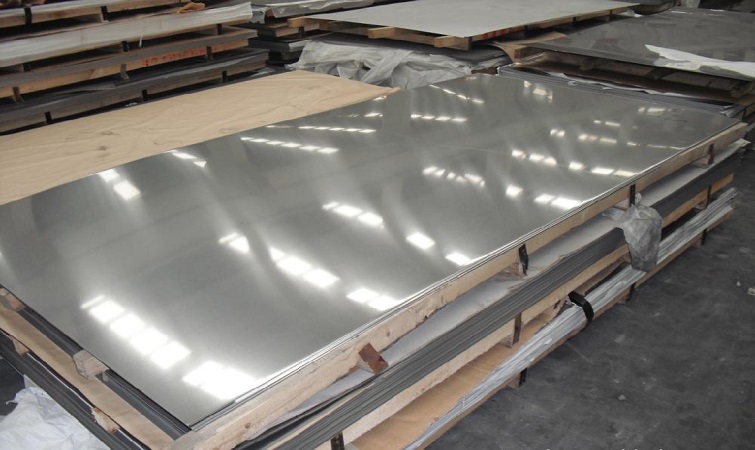

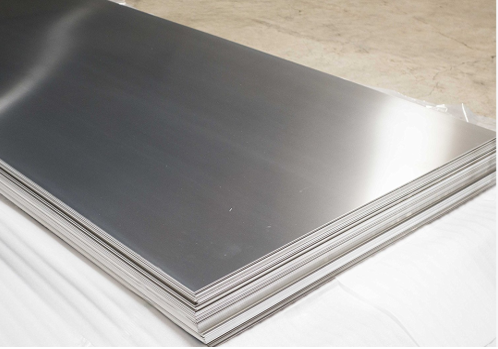

304/304L Stainless steel sheet/plate

304 Stainless Steel Plate is basic standard austenitic steel contains 18% chromium, and 8% nickel that offers high-temperature strength and excellent oxidation & corrosion resistance. The Alloy 304 Stainless Steel Plate is the most versatile product which exhibits good mechanical properties and durability. 304L Stainless Steel Plate has lower carbon content compared to SS 304 that provides excellent forming and welding characteristics. 304H Stainless Steel Plate is a modified version of grade 304 having higher carbon content that enhanced tensile strength.

These SS 304/304L/304H Plates are highly used in several industries like power production, shipbuilding, marine applications, food & chemical processing, and heat exchangers, etc.




Product Details

Product Name

Stainless Steel Sheets/Plates Grade 304

Thickness

0.3mm-3mm or 3mm-30mm

Width

20mm-1500mm or as required

Length

1500-6000mm or as required

Standard

ASTM/AISI ,AFNOR,BS,UNS,GB

Technique

Cold rolled/Hot rolled

Surface Treatment

2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc

Thickness Tolerance

±0.01mm~ ±0.25mm

Material

304 /304L /304H

Application

It is mainly used in chemical industry, petroleum, petrochemical and automotive industries.

MOQ

1 ton , We can accept sample order.

Shipment Time

Within 15-20 workdays after receiving deposit or workable L/C

Export Packing

Standard Export Seaworthy Package.Suit for all kinds of transport,or as required

Capacity

250,000 tons/year


Chemical Composition:

Grade C Mn Si P S Cr Ni
SS 304 0.08 max 2.0 max 0.75 max 0.045 max 0.030 max 18 – 20 8 – 11
SS 304L 0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 18 – 20 8 – 13
SS 304H 0.10 max 2.0 max 0.75 max 0.045 max 0.030 max 18 – 20 8 – 10.5





Mechanical Properties of Stainless Steel 304/ 304L/ 304H Plates:

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.93 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35%

　　
