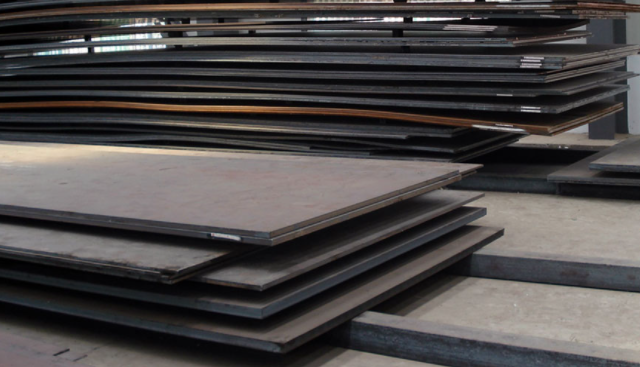

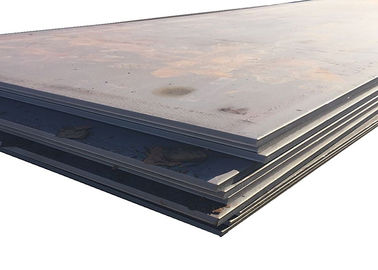

ASTM A516/ ASME SA516 Boiler Quality Steel Plates

Boiler Quality Steel Plate which are very popular due to its diversity of use and longevity. It is basically proposed for utilization in welded pressure vessels where indent durability is important. We can supply cut to size boiler steel plate with both narrow and wide widths. These hot rolled boiler steel plates are made available in a variety of grades and thickness and are developed to superior quality, deliberated to hold out the internal pressure in boilers and valves.

ASTM A516 or ASME SA 516 grade is one of the most popular boiler quality plates grade. It is made in such a way that the corrosion field can be controlled or stopped. The corrosion engineering promotes in controlling corrosions like crevice corrosion, stress corrosion cracking and pitting corrosion.

Product Details

Product Name	Boiler Quality Steel Plates
Thickness	3mm-200mm
Width	1250-4000mm or as required
Length	up to 12m or as required
Standard	ASME/ASTM A516
Technique	Hot rolled
Surface Treatment	According to customer's requirement
Thickness Tolerance	±0.01mm~ ±0.25mm
Material	Carbon Steel
Application	It is used in the construction of a boiler.
MOQ	1 ton , We can accept sample order.
Shipment Time	Within 15-20 workdays after receiving deposit or workable L/C
Export Packing	Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
Capacity	250,000 tons/year

Chemical Composition:

Grade	C					Mn		P	S	Si
	t < 12.5 mm	12.5mm < t =50mm	50mm < t ≤ 100mm	100mm < t ≤ 200mm	t < 200	t < 12.5	t ＞12.5
	t < 12.5 mm	12.5mm < t =50mm	50mm < t ≤ 100mm	100mm < t ≤ 200mm	mm	mm	mm
A516 Grade 55	0.18	0.2	0.22	0.24	0.26	0.60-0.90	0.55-0.98	≤0.035	≤0.035	≤0.15-0.40
A516 Grade 60	0.21	0.23	0.25	0.27	0.27	0.60-0.90	0.85-1.2	≤0.035	≤0.035	≤0.15-0.40
A516 Grade 65	0.24	0.26	0.28	0.29	0.29	0.85-1.2	0.85-1.2	≤0.035	≤0.035	≤0.15-0.40
A516 Grade 70	0.27	0.28	0.3	0.31	0.31	0.85-1.2	0.85-1.2	≤0.035	≤0.035	≤0.15-0.40

Physical properties :

Grade	Tensile Strength (ksi)	Tensile Strength (MPa)	Yield Strength (ksi)	Yield Strength (MPa)	Elongation in 200mm(%)	Elongation in 50mm(%)
A516 Grade 55	55-75	380-515	30	205	23	27
A516 Grade 60	60-80	415-550	32	220	21	25
A516 Grade 65	65-85	450-585	35	240	19	23
A516 Grade 70	70-90	485-620	38	260	17	21

*
*
